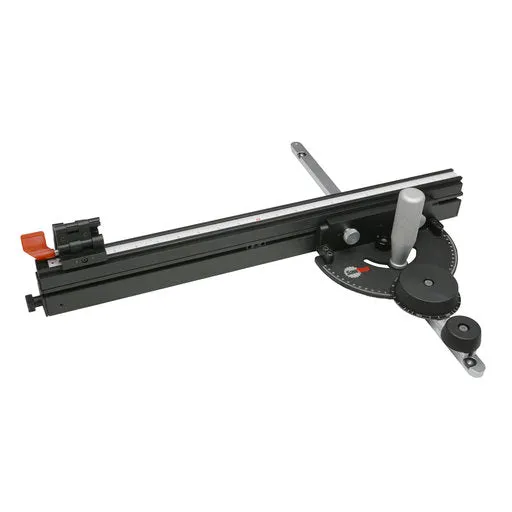

SawStop’s new patent-pending Revolution Miter Gauge delivers unmatched precision and accuracy with the spin of a dial. Intuitive, tool-free adjustments provide fine-tuning that is exact, reliable and repeatable.
Features:
Features:
- Tool-free setup and adjustment
- Sliding wedge system for fence attachments and repeatable stops
- Quick and easy setting of locked angle adjustments at 1/10°, 1/4°, 1/2° and 1°, or
- Free rotation
- Smooth glide and secure miter-slot fit with dynamic expansion disks

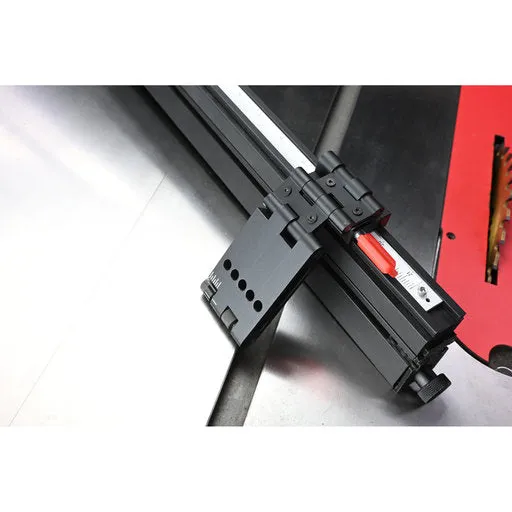

- Articulating flip stop enables micro-adjustment in 1/64" increments and tool-free use, even with a sacrificial fence face
- Sliding flip stop with mounting holes for adding jigs or locking to wedge system
- Tool-free expansion and adjustment of fence for cuts up to 37"
- Heavy-duty construction, including a steel miter plate manufactured with machine
- Tolerances of <.001" for exceptional precision
Specifications:
- Miter Bar Length: 20"
- Angle Range: 60° left and right
- Fence Length: 19-1/2" retracted - 37-1/2" fully extended
- Fence Height: 3"
- Weight: 8.4 lbs
