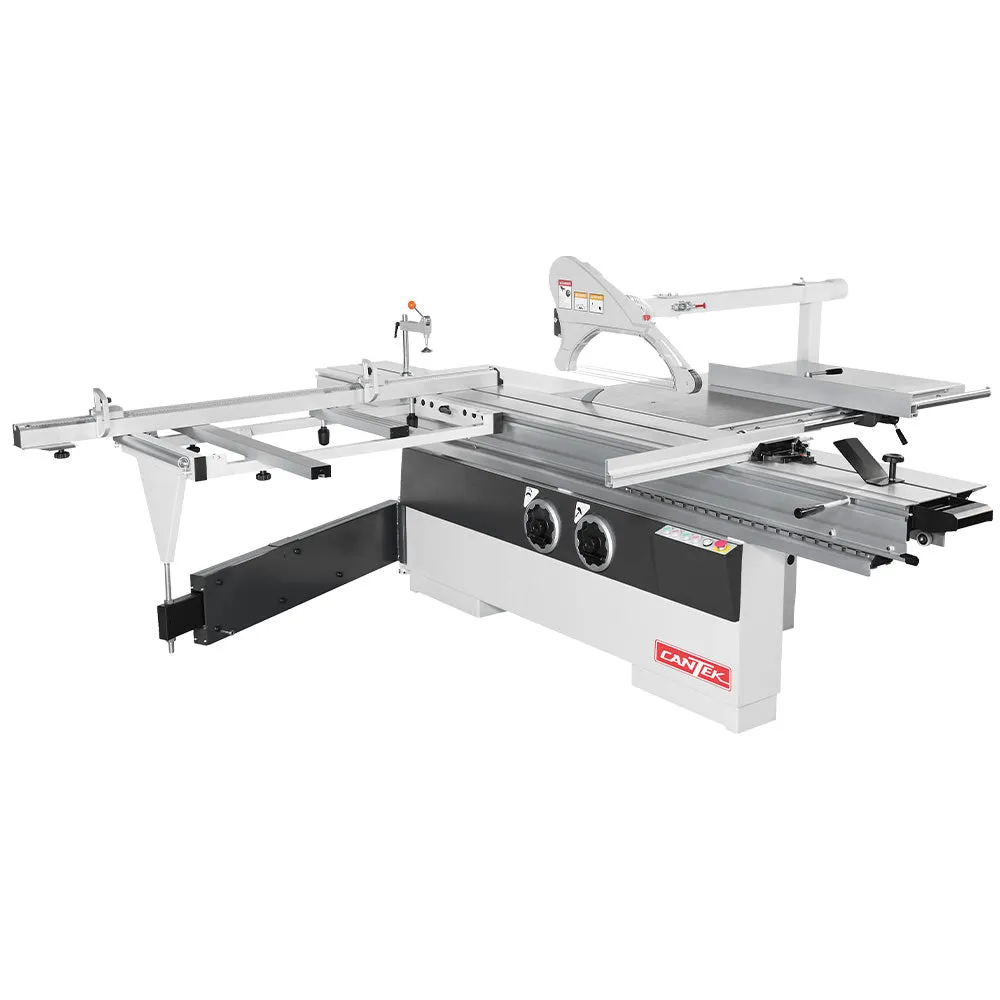

The Cantek D405M-8 8′ Sliding Table Saw is the ideal panel-cutting solution for kitchen cabinet shops, millwork companies, and furniture shops that need a precision saw but have limited floor space. The D405M-8 combines heavy-duty construction with a cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly and the crosscut miter fence can be easily and accurately adjusted for optimum results
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email [email protected]
Note: Cannot ship to Pennsylvania or California.
[TABS]
Features

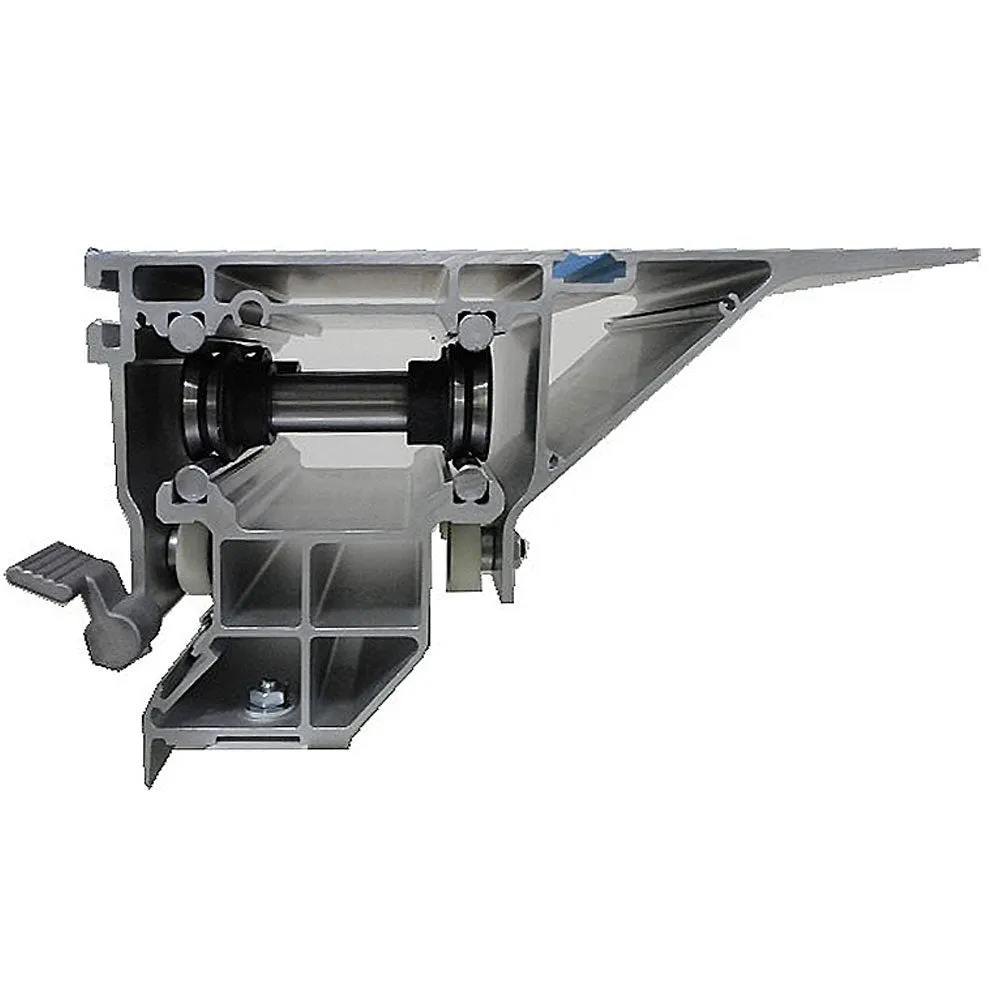

- Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement

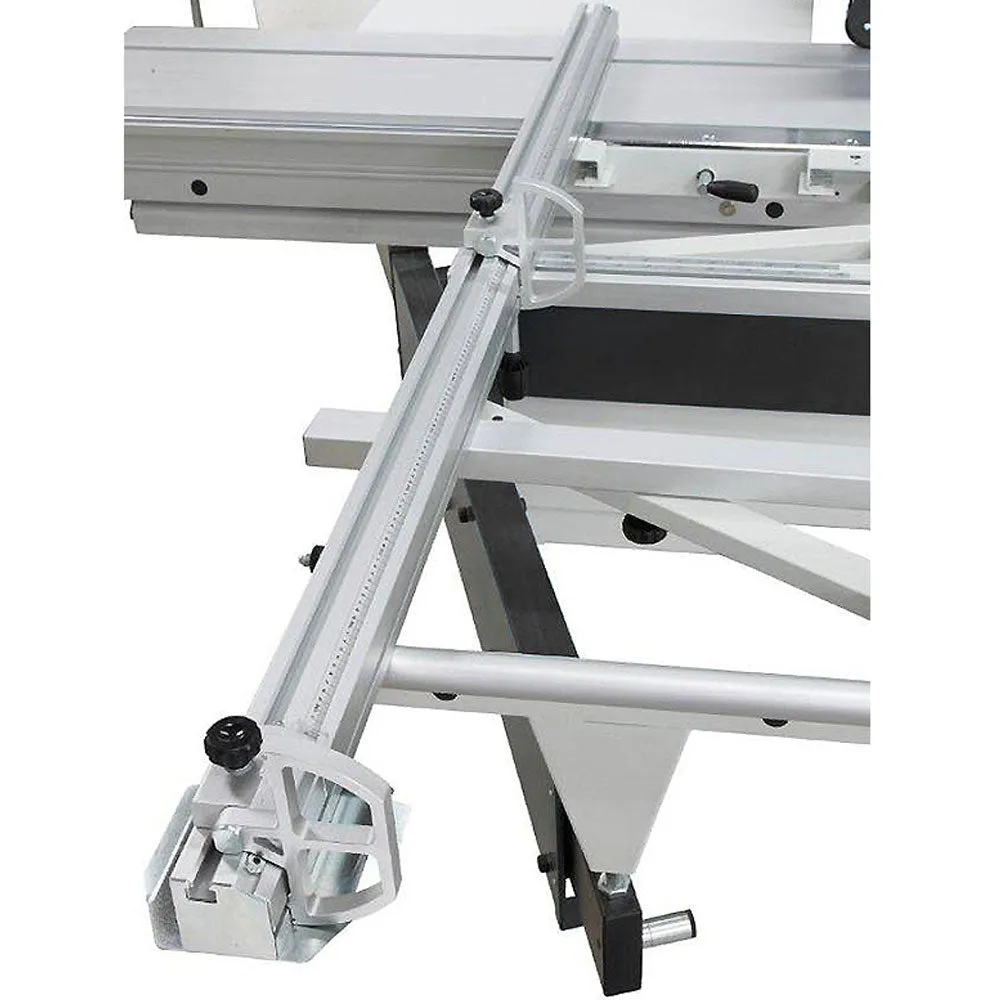

- Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
- Manual blade rise, fall, and tilting with a convenient pointer for blade angle display

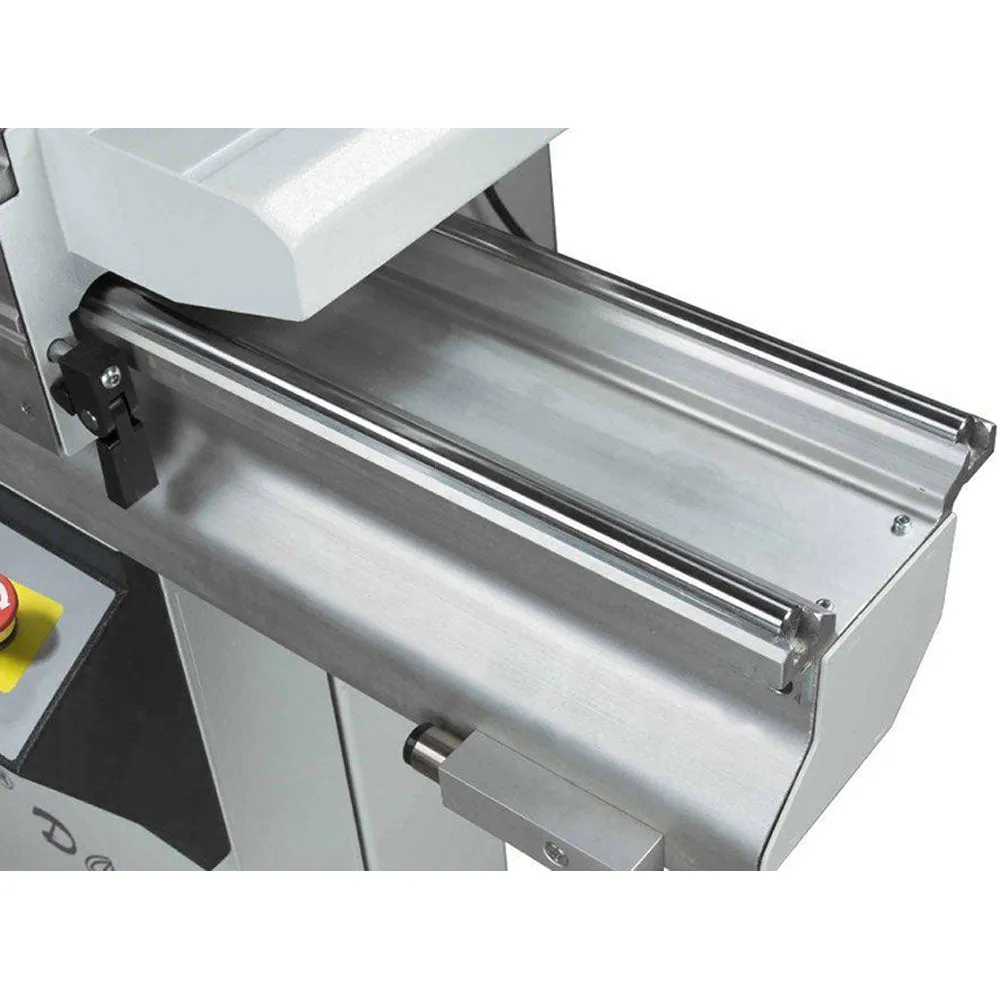

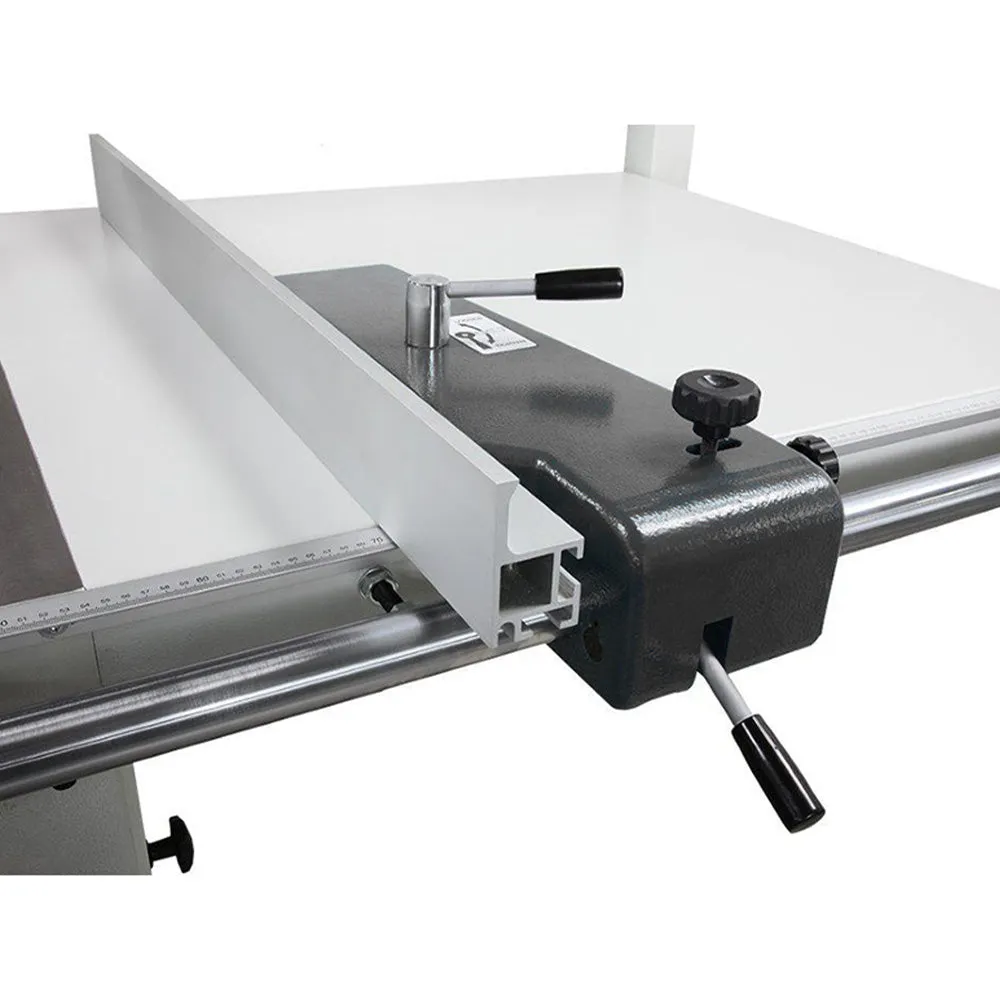

- Heavy duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob

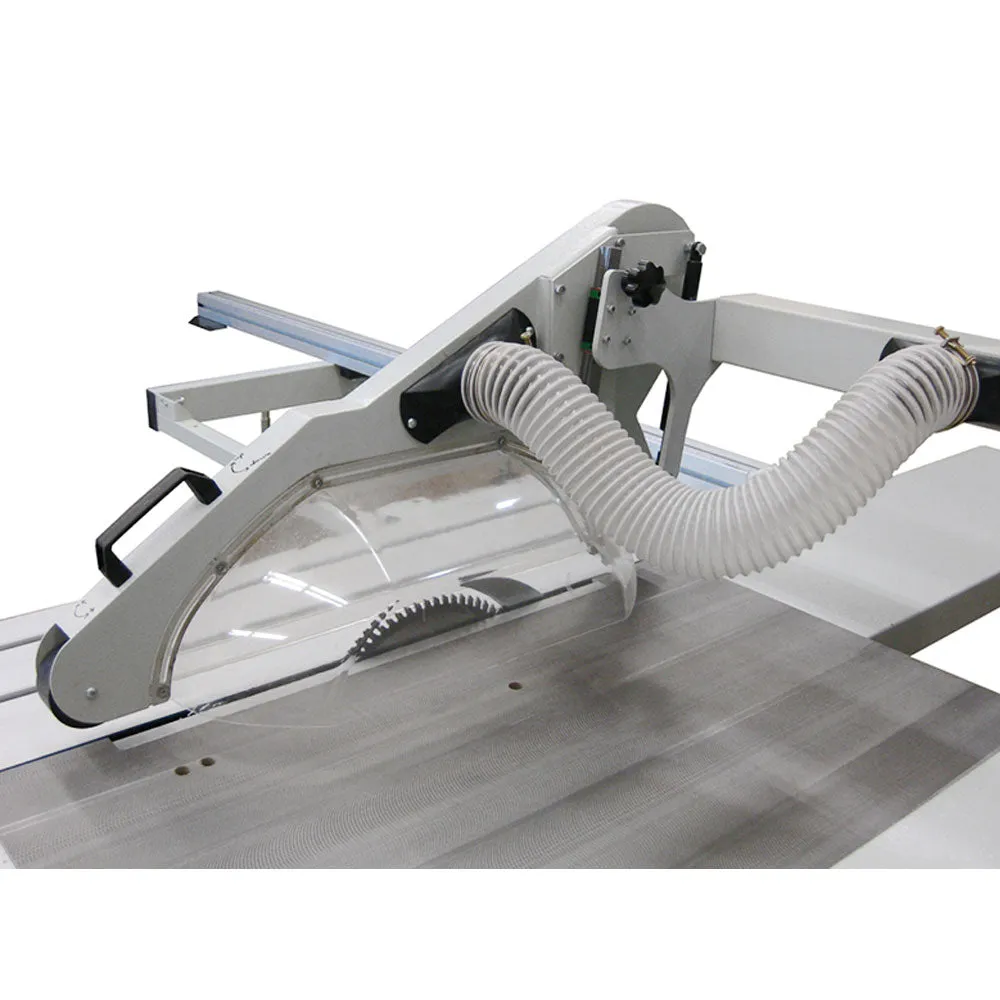

- Overarm safety guard with a quick-change system for changing between straight and bevel cutting guards
- Powerful 7-1/2hp main motor for 3 Phase or 5 HP main motor for Single Phase, with separate 1hp scoring motor

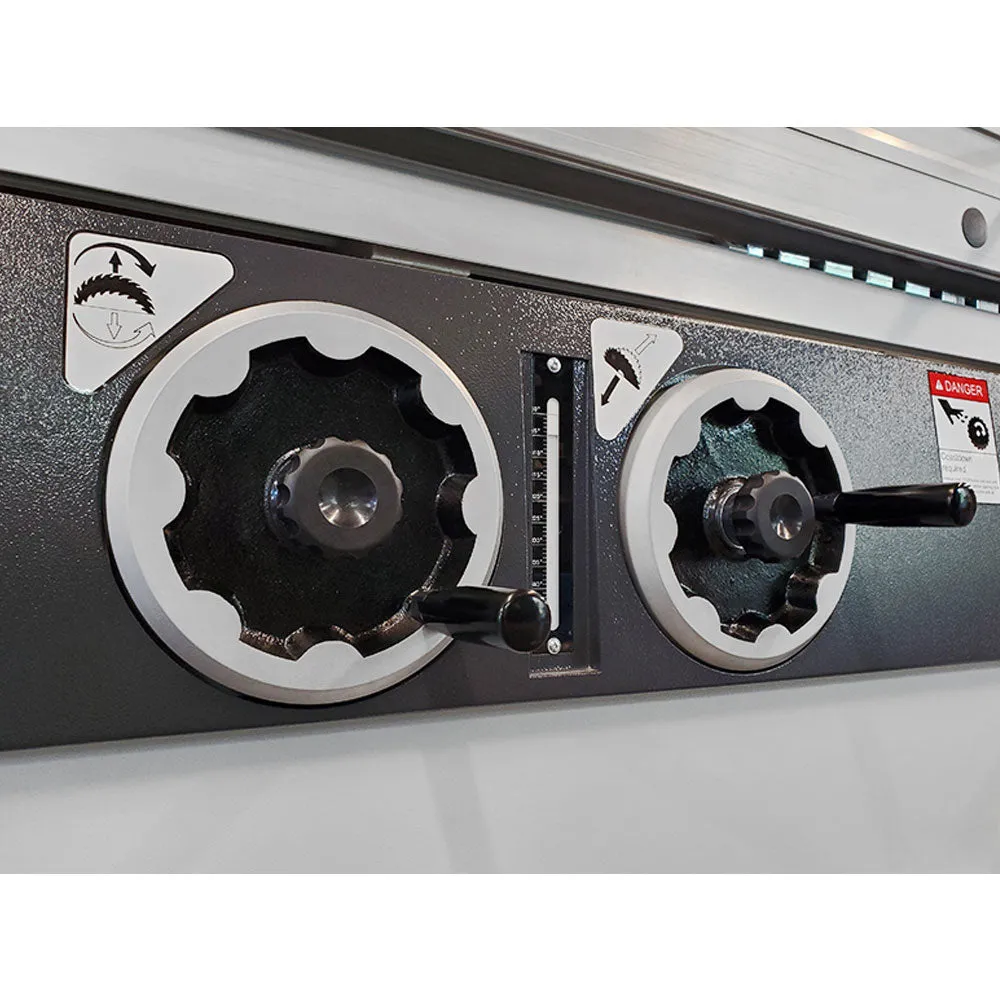

- Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
- Heavy-duty outrigger for strong support of workpiece during cutting operations
- Dual-inch and metric scales for both rip and crosscut fences

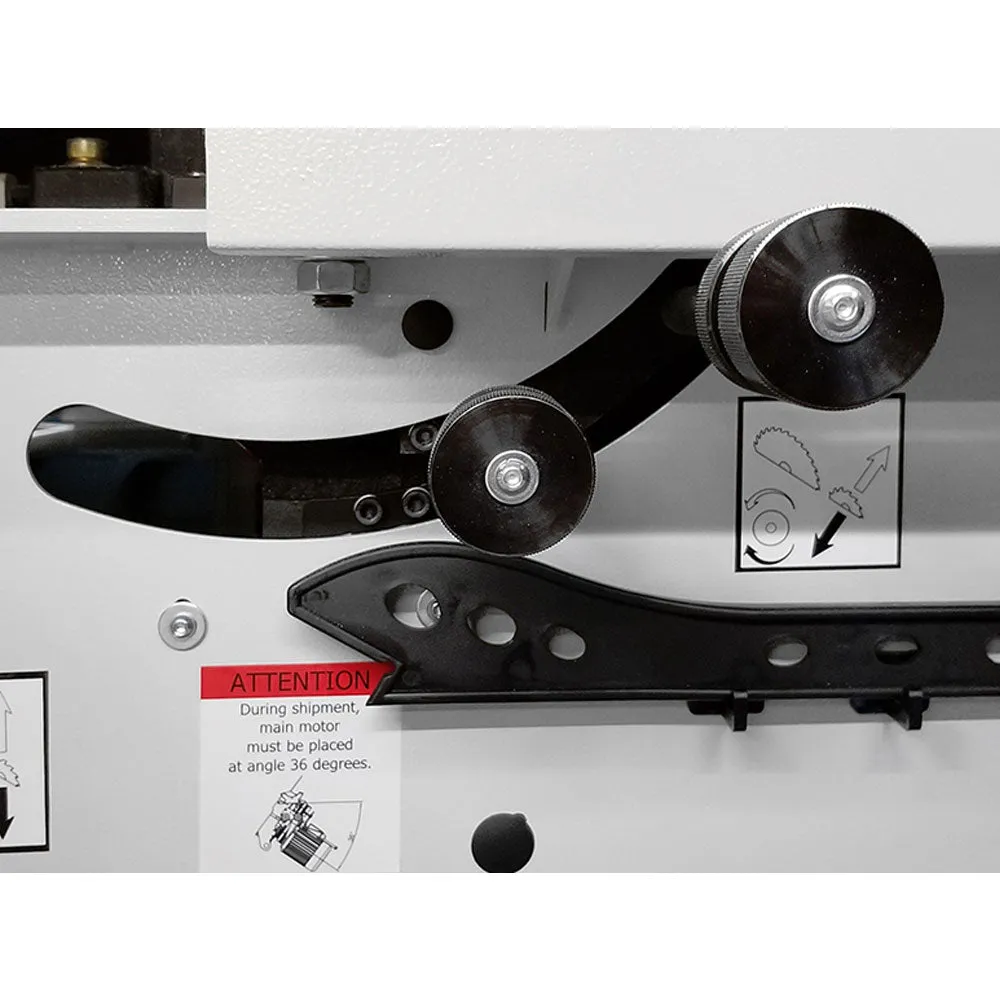

- Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience

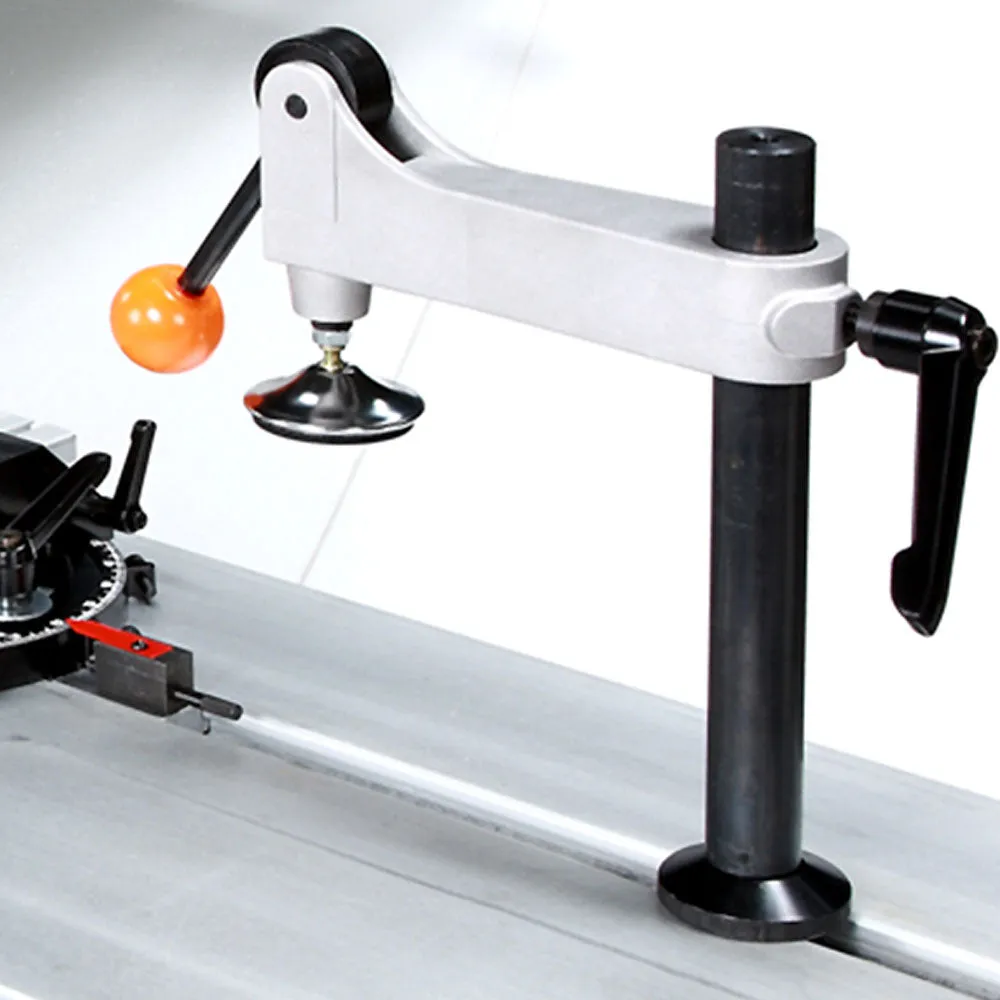

- Eccentric hold-down clamp, table return handle, and wedge for solid wood ripping included
- Overhead saw blade guard with built-in dust port included (CE-type)
Specs
Sliding table dimension: 102.4″ x 14.9″ (2,600 x 378 mm)
Cast iron table: 21.6″ x 35.3″ (548 x 896 mm)
Extension table (rear): 37.5″ x 35.3″ (952 x 896 mm)
Extension table (front): 12.6″ x 32.7″ (320 x 830 mm)
Table size: 59″ x 68″ (1,500 x 1,726 mm)
Round rail: 1.97″ (50 mm)
Maximum main saw blade dia: 16″ (400 mm)
Main saw bore: 30mm
Max. cutting height at 90° (355mm): 4.13″ (105 mm)
Max. cutting height at 45° (355mm): 2.76″ (70mm)
Main motor power: 7.5 HP (3ph) / 5HP (1ph) (5.5 kW (3ph) /3.7 kW (1ph))
Main blade speed (3): 3,000/4,000/5,000 RPM
Scoring saw blade: 120 mm
Scoring saw blade bore: 20 mm
Scoring blade motor power: 1 HP (0.75 kW)
Scoring blade speed: 8,000 RPM
Cutting width: 51.2″ (1300 mm)
Cutting width adjustment: Manual
Main saw blade tilting adjustment: Manual (0°~45°)
Main saw height adjustment: Manual
Scoring saw adjustment: Manual
Dust ports (machine / guard): 4.72″ / 2.5″ (120mm / 64 mm)
Machine total weight: 1612 lbs. (733 kgs)
Machine shipping details: 1428 lbs. (83″x46″x44″)
Sliding table shipping details: 363 lbs. (137″x20″x15″)
Overhead guard shipping details: 80 lbs. (40″x36″x6″)
Electrics: 230/3/60 = 26.2 Full Load
Electrics: 230/1/60 = 36 Full Load Amps
